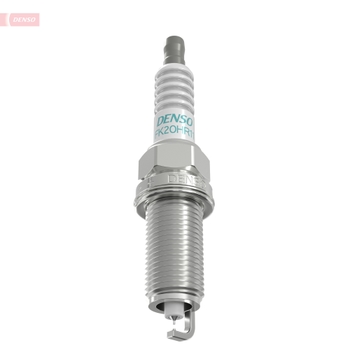

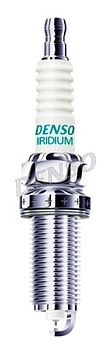

Spark Plug

DENSO part number: FK20HR11

Where to buy?
GTIN/EAN
042511034266, 042511342644, 1004251134264
Packing unit
1
Quantity per packing unit
4
Status
Normal

Part specifications

Technical Information
Terminal Shape:Solid. Ground:Platinum Needle
Description
Super Ignition Plug
For OE number
90919-01247
Connector type
Solid SAE
Diameter [mm]
14
Spanner Size
16
Tightening Torque [Nm]
22
Net Weight [g]
48
Country Specific Design
Japan
Spark Plug

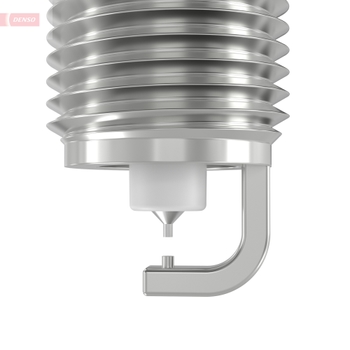

With resistor, 1 - Earthed Electrode, Iridium Middle Electrode, Platinum mass electrode
Thread Length [mm]
26,5
Gross Weight [g]
51
Alternative item
IKH20TT

Catalogues and marketing materials

OE numbers

DENSO
267700423
267700-4230
3426
+2
HONDA
12290-RBJ-003
12290-RW0-003
HYUNDAI
18845-08200
MITSUBISHI
1822-A071
1822A151
SUBARU
22401-AA700
TOYOTA
90919-01247
90919-01248

General product information

Known as the ‘heart of the engine’, spark plugs play a key role in the ignition and performance of the entire engine. The well-timed combustion of the fuel-air mixture of gasoline and oxygen is what generates power in gasoline engines. The precise timing of the spark created by the spark plug ignites the fuel, triggering combustion.

To create this spark, a high voltage is passed between the centre electrode and ground electrode of the spark plug. This voltage breaks down the natural insulation between these electrodes and an electrical spark is generated. Although this strong spark only lasts for about 1/1,000 of a second, it has to be precisely and reliably timed to trigger the combustion of the fuel-air mixture.
