Ignition
Spark plugs
DENSO part number: SC16HR11

Back

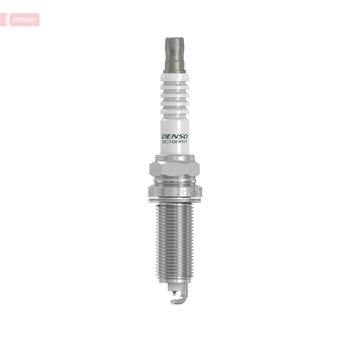

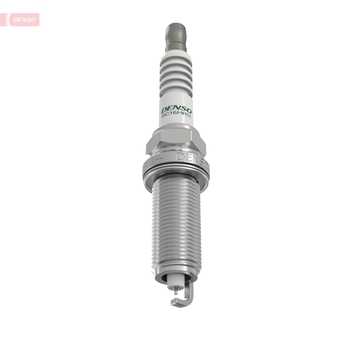

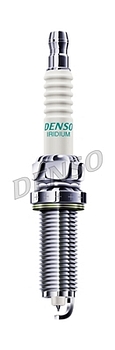

Spark Plug

DENSO part number: SC16HR11

Where to buy?

GTIN/EAN

042511034990, 042511349940, 1004251134994

Packing unit

Quantity per packing unit

Status

Normal

Show all specifications

Part specifications

Technical Information

Terminal Shape:Solid. Ground:Platinum

Description

Iridium

For OE number

90919-01275

Connector type

Solid SAE

Diameter [mm]

Spanner Size

Tightening Torque [Nm]

Net Weight [g]

Spark Plug

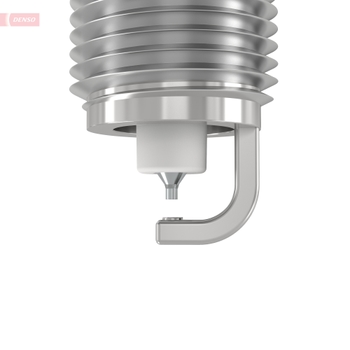

With resistor, 1 - Earthed Electrode, Iridium Middle Electrode, Platinum mass electrode

Thread Length [mm]

26,5

Gross Weight [g]

Alternative item

IXEH20TT

Catalogues and marketing materials

Browse the Downloads Area section

OE numbers

CITROËN/PEUGEOT

16 115 481 80

DAIHATSU

90919-01253

90919-01275

DENSO

267700830

267700-8300

3499

SUBARU

90919-01253

TOYOTA

90919-01253

90919-01275

90919-T1009

General product information

Known as the ‘heart of the engine’, spark plugs play a key role in the ignition and performance of the entire engine. The well-timed combustion of the fuel-air mixture of gasoline and oxygen is what generates power in gasoline engines. The precise timing of the spark created by the spark plug ignites the fuel, triggering combustion.

To create this spark, a high voltage is passed between the centre electrode and ground electrode of the spark plug. This voltage breaks down the natural insulation between these electrodes and an electrical spark is generated. Although this strong spark only lasts for about 1/1,000 of a second, it has to be precisely and reliably timed to trigger the combustion of the fuel-air mixture.
