Ignition
Spark plugs
DENSO part number: SXU22HCR11S

Back

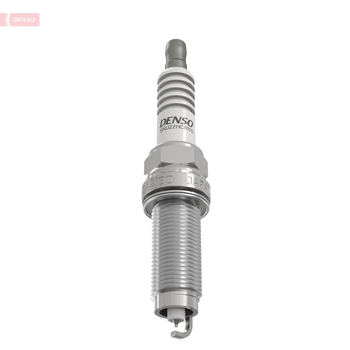

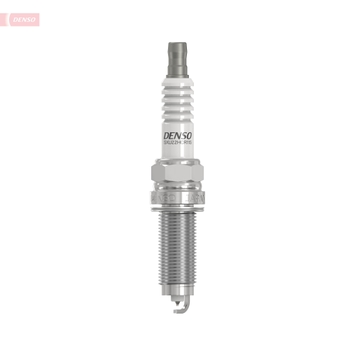

Spark Plug

DENSO part number: SXU22HCR11S

Where to buy?

GTIN/EAN

042511034617, 042511346147, 1004251134614

Packing unit

Quantity per packing unit

Status

Normal

Show all specifications

Part specifications

Technical Information

Terminal Shape:Solid. Ground:Platinum

Description

Iridium

For OE number

12290-R40-A02

Connector type

Solid SAE

Diameter [mm]

Spanner Size

Tightening Torque [Nm]

Net Weight [g]

Country Specific Design

Japan

Spark Plug

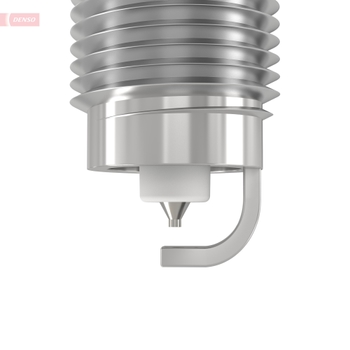

With resistor, 1 - Earthed Electrode, Iridium Middle Electrode, Platinum mass electrode

Thread Length [mm]

26,5

Gross Weight [g]

Alternative item

VXUHC22G

Catalogues and marketing materials

Browse the Downloads Area section

OE numbers

DENSO

267600001

267700-5530

3461

HONDA

12290-R1A-H01

12290-R40-A01

12290-R40-A02

General product information

Known as the ‘heart of the engine’, spark plugs play a key role in the ignition and performance of the entire engine. The well-timed combustion of the fuel-air mixture of gasoline and oxygen is what generates power in gasoline engines. The precise timing of the spark created by the spark plug ignites the fuel, triggering combustion.

To create this spark, a high voltage is passed between the centre electrode and ground electrode of the spark plug. This voltage breaks down the natural insulation between these electrodes and an electrical spark is generated. Although this strong spark only lasts for about 1/1,000 of a second, it has to be precisely and reliably timed to trigger the combustion of the fuel-air mixture.
